Rittal Enclosure PS 4000
Design and Engineering Modified


Rittal Enclosure PS 4000



Rittal Enclosures and Panels are Global acknowledged approvals, product certifications as per worldwide standards and comprehensive tests at our own test laboratories assurance for top product quality - for you to be on the secure side.
Rittal make Panels Boxes are Eight plug-in corner connectors and surplus welding provide for Section through the vertical profile (above image) . Rittal Enclosure door with the durable connections. tubular door frame. Constancy and high guard category are provided by



Rittal-Panels-Boxes



Rittal-Panels-Boxes





Rittal-Panels-Boxes



Rittal-Panels-Boxes



Rittal Enclosure Single Door
Configuration details:
500 : Enclosure frame, front door, rear bolted cover, roof plate with eyebolts, bottom cover with standard gland plate and one Component Mounting plate.
501 : Enclosure frame, front door, rear door, roof plate with eyebolts, bottom cover with standard gland plate and one Component Mounting plate.
510 : Enclosure frame, front door, rear bolted cover, roof plate with eyebolts, bottom cover with standard gland plate.
511 : Enclosure frame, front door, rear door, roof plate with eyebolts, bottom cover with standard gland plate.
521 : Enclosure frame, front door, rear door, roof plate with eyebolts, bottom cover with standard gland plate and two Component Mounting plates.
Note: Enclosure with IP 65 & Seismic panels - available on request
Material:
Sheet steel Enclosure frame: 9-fold profile Door: 2.0 mm Rear panel: 1.5 mm Component Mounting plate: 3.0 mm Gland plate: 1.5 mm



Rittal Panel Supply includes:
Enclosure frame with door, removable rear panel and roof plate, 4 eyebolts fitted, Component Mounting plate, gland plates, depth stay as shipping brace (r/h door hinge, can be changed to opposite side - single door Lockable door on right - double door).
Rittal Box Surface finish:
Enclosure frame & bottom cover: Dipcoat primed.Door, roof and rear panel: dipcoat primed, powder coated in textured RAL 7035 on the outside
Component Mounting plate & Gland plate: Galvanized sheet steel.
Rittal gives Protection Category:
Rittal Enclosure is certified for IP 55 to EN 60 529 Complies with NEMA 12.



Rittal Make Enclosure Double Door

Model No.

Width

Height

Depth

Doors

RITTAL MAKE PS 4005.500

1000 mm

2000 mm

500 mm

2

RITTAL MAKE PS 4006.500

1000 mm

2000 mm

600 mm

2

RITTAL MAKE PS 4008.500

1000 mm

2000 mm

800 mm

2

RITTAL MAKE PS 4084.500

1000 mm

1800 mm

400 mm

1

RITTAL MAKE PS 4204.500

1200 mm

2000 mm

400 mm

2

RITTAL MAKE PS 4205.500

1200 mm

2000 mm

500 mm

2

RITTAL MAKE PS 4206.500

1200 mm

2000 mm

600 mm

2

RITTAL MAKE PS 4208.500

1200 mm

2000 mm

800 mm

2

RITTAL MAKE PS 4226.500

1200 mm

2200 mm

600 mm

2

RITTAL MAKE PS 4284.500

1200 mm

1800 mm

400 mm

2

RITTAL MAKE PS 4285.500

1200 mm

1800 mm

500 mm

2

RITTAL MAKE PS 4286.500

1200 mm

1800 mm

600 mm

2

RITTAL MAKE PS Rittal 4604.500

600 mm

2000 mm

400 mm

1

RITTAL MAKE PS Rittal 4605.500

600 mm

2000 mm

500 mm

1

RITTAL MAKE PS Rittal 4606.500

600 mm

2000 mm

600 mm

1

RITTAL MAKE PS Rittal 4608.500

600 mm

2000 mm

800 mm

1

RITTAL MAKE PS Rittal 4626.500

600 mm

2200 mm

600 mm

1

RITTAL MAKE PS Rittal 4684.500

600 mm

1800 mm

400 mm

1

RITTAL MAKE PS Rittal 4685.500

600 mm

1800 mm

500 mm

1

RITTAL MAKE PS 4804.500

800 mm

2000 mm

400 mm

1

RITTAL MAKE PS 4805.500

800 mm

2000 mm

500 mm

1

RITTAL MAKE PS 4806.500

800 mm

2000 mm

600 mm

1

RITTAL MAKE PS 4808.500

800 mm

2000 mm

800 mm

1

RITTAL MAKE PS 4826.500

800 mm

2200 mm

600 mm

1

RITTAL MAKE PS 4884.500

800 mm

1800 mm

400 mm

1

RITTAL MAKE PS 4885.500

800 mm

1800 mm

500 mm

1

RITTAL MAKE PS 4886.500

800 mm

1800 mm

600 mm

1

RITTAL MAKE PS 4888.500

800 mm

1800 mm

800 mm

1





Article No. RITTAL MAKE PS

Size in mm Wx H x D



RITTAL MAKE PS Selection
Example:-
Width
6 – 600 W 8 – 800 W 0 – 1000 W 2 – 1200 W
RITTAL MAKE PS 4000 Series
Height
8 – 1800 H 0 – 2000 H 2 – 2200 H
Width
Height
Depth
4 – 400 D 5 – 500 D 6 – 600 D 8 – 800 D
RAL 7035
Special size available on request
Component Mounting plate
0 –1 Component Mounting plate 1 – without Component Mounting plate 2 – 2 Component Mounting plates



04
The baying system RITTAL MAKE PS 4000
Depth
Rear
0 – Rear pane


− Directly via support brackets RITTAL PS
− Via adaptor rail for RITTAL MAKE PS compatibility in conjunction with angle brackets, Component Mounting brackets or support brackets RITTAL MAKE PS
Material :
Sheet steel
Surface Finish:
Zinc plated
Also required:
− U nuts
− Component Mounting brackets RITTAL TS /RITTAL MAKE PS or
− Angle brackets, support brackets RITTAL TS /RITTAL MAKE PS



Packs of

Model No.RITTAL MAKE PS

6

Rittal PS 4189. 000



For Enclosure Width / Depth mm

Length mm

Packs of

Model No.RITTAL MAKE PS

400

340

20

Rittal 4694.000

500

440

20

Rittal 4695.000

600

540

20

Rittal 4696.000

800

740

20

Rittal 4697.000





Length mm mm

For WHD mm

Packs of

Model No.RITTAL MAKE PS

295

400

12

Rittal PS 4169.000

395

500

12

Rittal PS 4170.000

495

600

12

Rittal PS 4171.000

695

800

12

Rittal PS 4172.000

895

1000

12

Rittal PS 4173.000







The baying system RITTAL MAKE PS 4000
The baying system RITTAL MAKE PS 4000
The baying system RITTAL MAKE PS 4000

Accessories
RITTAL MAKE PS punched section without Component Mounting flange, 23 x 73 mm
with 5 rows of holes for universal skeleton structures or partial assembly.
Installation options:
On the vertical enclosure section
− Directly via support brackets RITTAL PS
− Via adaptor rail for RITTAL MAKE PS compatibility in conjunction with support brackets RITTAL MAKE PS
On the horizontal enclosure section Directly via support brackets RITTAL MAKE PS Rittal PS 4183.000

Material :
Sheet steel
Surface Finish:
Zinc plated
Also required:
Support brackets RITTAL MAKE PS/RITTAL PS
RITTAL MAKE PS punched section with Component Mounting flange 23 x 73 mm
Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the system punchings and secure.
Installation options:
On the vertical enclosure section
− Via adaptor rail for RITTAL MAKE PS compatibility





On the horizontal RITTAL TS  enclosure section On the RITTAL MAKE PS system punchings,
in the enclosure depth*

Length mm mm

For WHD mm

Packs of

Model No.RITTAL MAKE PS

295

400

4

Rittal PS 74.000

395

500

4

Rittal PS 75.000

495

600

4

Rittal PS 76.000

695

800

4

Rittal PS 77.000

895

1000

4

Rittal PS 82.000

1095

1200

4

Rittal PS 78.000

1695

1800

4

Rittal PS 79.000

1895

2000

4

Rittal PS 80.000

2095

2200

4

Rittal PS 81.000





RITTAL MAKE PS punched section with Component Mounting  flange 23 x 73 mm
Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate
into the system punchings and secure.
Installation options:
On the vertical enclosure section
− Via adaptor rail for RITTAL MAKE PS compatibility
On the horizontal PS enclosure section On the RITTAL MAKE PS system punchings,
in the enclosure depth*

Length mm mm

For WHD mm

Packs of

Model No.RITTAL MAKE PS

295

400

4

Rittal PS 74.000

395

500

4

Rittal PS 75.000

495

600

4

Rittal PS 76.000

695

800

4

Rittal PS 77.000

895

1000

4

Rittal PS 82.000

1095

1200

4

Rittal PS 78.000

1695

1800

4

Rittal PS 79.000

1895

2000

4

Rittal PS 80.000

2095

2200

4

Rittal PS 81.000







* Installation in enclosure depth RITTAL MAKE PS,TP universal console, mm

Packs of

Model No.RITTAL MAKE PS

400

4

Rittal PS 69.000

500

4

Rittal PS 70.000

600

4

Rittal PS 71.000

800

4

Rittal PS 72.000









**Installation in enclosure width / depth RITTAL PS  mm

Packs of

Model No.RITTAL MAKE PS

600

4

Rittal PS 64.000

800

4

Rittal PS 65.000

1000

4

Rittal PS 73.000

1200

4

Rittal PS 67.000





Material :
Sheet steel
Surface Finish:
Zinc plated
Supply includes:
Assembly screws
** installation in enclosure width for RITTAL MAKE PS



The baying system RITTAL MAKE PS 4000

Accessories
Angle bracket RITTAL MAKE PS
For quick attachment of punched rails 23 x 23 mm.
Installation options:
On the vertical PS enclosure section via − Adaptor rail for RITTAL MAKE PS compatibility On the horizontal PS enclosure section On enclosures and rails with rectangular system punching 12.5 x 10.5 mm.
Material :
Sheet steel
Surface Finish:
Zinc plated
Supply includes (1 set) :
1 angle bracket, left 1 angle bracket, right 2 metal screws 5.5 x 13 mm
Also required :
− U nuts for punched rails
− Multi-tooth screws M6 x 12 mm, 2504.500
Component Mounting bracket RITTAL MAKE PS
For variable attachment of punched rail 23 x 23 mm.

Optionally flush with : − Outer enclosure edge or − Enclosure clearance width
On the vertical PS enclosure section via − Adaptor rail for RITTAL MAKE PS compatibility,
On the horizontal PS enclosure section
On enclosures and rails with rectangular system punching 12.5 x 10.5 mm
Material:
Die-cast zinc
Supply includes (1 set) :
1 Component Mounting bracket 1 screw M6 x 12 mm 1 cage nut M6
Also required:
− U nuts for punched rails (recommended: M6) − Multi-tooth screws M6 x 12 mm, 2504.500



Packs of

Model No.RITTAL MAKE PS

12 set

Rittal PS 4181.000







Packs of

Model No.RITTAL MAKE PS

24 set

Rittal PS 4182.000





The baying system RITTAL MAKE PS 4000
RITTAL MAKE PS 4000

Rittal Accessories



Packs of

Model No.RITTAL MAKE PS

24 set

Rittal PS 4183.000



Support bracket RITTAL MAKE PS
For the attachment of punched sections without Component Mounting flange 23 x 73 mm or punched rails 23 x 23 mm.
Installation options:
On the vertical PS enclosure section via
− Snap-on nut RITTAL PS 8800.806,
− Adaptor rail for RITTAL MAKE PS compatibility On the horizontal RITTAL PS enclosure section On enclosures and rails with rectangular system punching 12.5 x 10.5 mm
Material :
Die-cast zinc
Supply includes (1 set) :
1 support bracket 2 countersunk screws 2 serrated lock washers
Also required :

− U nuts for punched rails (recommended: M6)
− Multi-tooth screws M6 x 12 mm
− Adaptor rail for RITTAL MAKE PS compatibility (when Component Mounting on the vertical enclosure section) Bracket/spacer
For fastening C rails, punched rails or cable clamp rails (angle section). On the sides, to accommodate square sections or tubes (Ø 20 mm). Attachment points with M8 thread.

Installation options :
On the vertical RITTAL PS enclosure section via − Snap-on nut RITTAL PS 8800.808, or
− Adaptor rail for RITTAL MAKE PS compatibility On the horizontal RITTAL PS enclosure section On enclosures and rails with rectangular
system punching 12.5 x 10.5 mm

Material :
Die-cast zinc

Supply includes (1 set) :
1 bracket/spacer
2 screws M8 x 16 mm
2 spring lock washers
2 cage nuts M8
2 serrated lock washers 2 Metal screws

Packs of

Model No.RITTAL MAKE PS

6 set

Rittal PS 4199.000

Accessories
U nuts
For
Punched rail 23 x 23 mm
Punched section without Component Mounting flange, 23 x 73 mm Punched section without Component Mounting flange, 45 x 88 mm Punched section with Component Mounting flange, 23 x 73 mm
For Component Mounting punched rails and punched sections without Component Mounting flanges on angle brackets, Component Mounting brackets and support brackets, we recommend U nuts with M6 thread (RITTAL MAKE PS Rittal PS 4179.000)

Accessories:
Multi-tooth screws M6 x 12 mm, (for RITTAL MAKE PS Rittal PS 4179.000) Captive nuts/threaded blocks
Installation options:
On enclosures and rails with rectangular system punching 12.5 x 10.5 mm, such as:
RITTAL PS enclosure section
− vertically, via adaptor rail for RITTAL MAKE PS compatibility
− horizontally, direct
RITTAL MAKE PS enclosure body, all-round Punched rail 23 x 23 mm Punched section without Component Mounting flange, 23 x 73 mm Punched section without Component Mounting flange, 45 x 88 mm Punched section with Component Mounting flange, 23 x 73 mm

Captive nuts
The compression spring, designed as an pullout aid, ensures reliable mechanical and electrical connection in the system punching.

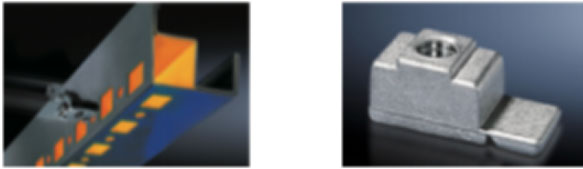

Threaded block
With snap-off insertion aid, die-cast zinc



Threaded-block

Thread

Packs of

Model No.RITTAL PS

M4

20

Rittal PS 4119.000

M5

20

Rittal PS 4157.000

M6

20

Rittal PS 4179.000

M8

20

Rittal PS 4180.000







Thread

Packs of

Model No.RITTAL PS

M6

50

Rittal PS 4166.000

M6

50

Rittal PS 4164.000

M8

50

Rittal PS 4165.000





Thread

Packs of

Model No.RITTAL PS

M6

50

Rittal PS 4162.000

M8

50

Rittal PS 4163.000





The baying system RITTAL MAKE PS 4000

RITTAL MAKE PS 4000

Accessories



Assembly

Packs of

Model No.

Bottom

5

4583.000



Door stay
To secure door in open position.
Rittal Ride-Up roller
Lifts the door with heavy installed equipment (e.g. cooling unit) as a closing aid. For attaching to the tubular door frame.

Rittal Make Limit switch
Lifts the door with heavy installed equipment (e.g. cooling unit) as a closing aid. For attaching to the tubular door frame.

Rittal Make Limit switch

Packs of

Model No. RITTAL PS
10 4538.000

Rittal Make Limit switch

Article No. Description
Rittal PS 4127.010 Door-operated Switch with Support plate



Grups supplies Rittal Make PS enclosure in for Pharmaceutical application to Variouse Equipment Manufacturrer company in Vasai and Mumbai . We also provide service and support for Rittal Make PS enclosure in different cities like ahmadabad Delhi , Surat and Pune

We are dealer for rittal Make PS M.S enclosure cater chemical and Food and Beverages industries . We have comissioned variouse size of rittal Make Control panel boxes and Emclosure in Tarapur , Palghar , Hyderebad and Bangalore . Grups can give you lowest price of Rittal Make PS Model control panel boxes . We do keep stock of all range of Rittal PS Model Panels in Navi Mumbai , Pune and Thane. We are also distributor for Rittal make Enclosure of PS Model all Over India ( Nashik , Badodara , Ahmadabad , Silvassa. We can trader for Rittal make SS Enclosure in nearest location in most populated cities in kolkata , Coimbatore ,Chinnai , Vadodara

Grups can manufacture Rittal Make equivalent enclosure and supply to any industries in Pune , Ahmadabad , Tarapure, Banglore Chennai

Get the price immediately (currently in stock) click Here....
